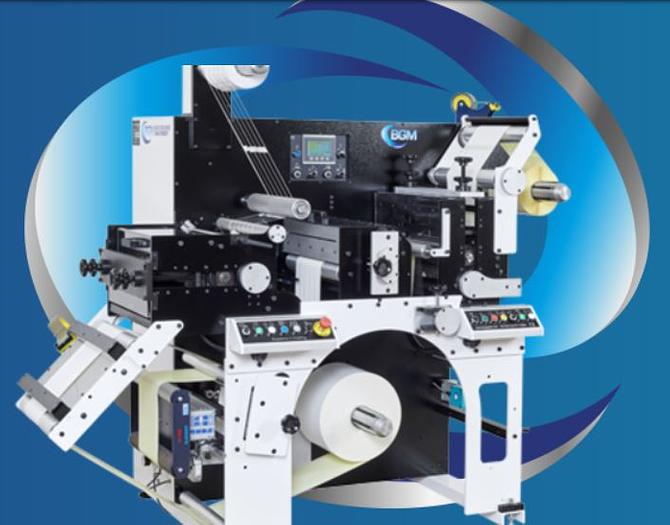

BGM Elite eDPSR Easy Load Die Cut & Perf Slitter Rewinder
BGM Elite eDPSR Easy Load Die Cut & Perf Slitter Rewinder
Grandview, MO
Description
Web Width Available • 370mm (14.5") die cut width
• 410mm (16") web width Unwind • 2700 linear meter capacity - diameter (700mm) – (27.5”) • 76mm (3”) air expanding unwind mandrel • Electromagnetic particle brake • Ultrasonic roll compensation • Ultrasonic roll end facility Adjustable Splice Table • Dual air operated splice clamps Easy Load Rotary Die Station • 1/8CP 20-degree pressure angle • Fully through core hardened anvil • Waste capstan roller with adjustable tension control • Waste rewind independently driven ensuring outstanding matrix stripping with adjustable tension control • 76mm (3”) mechanical waste rewind mandrel Rotary Sheer Cut Slitting System • Unique quick set up cartridge system • Lateral cartridge adjustment +/- 8mm from datum point • Datum point for ease of set up • Minimum slit width 13mm • 3 complete sets of blades supplied • Fully interlocked guards Driven Draw Roller • Nip roller impression air operated • Silicone covered gear driven nip roller perforation
Perforation Rotary Die Station
• 1/8CP 20-degree pressure angle
• Fully through core hardened anvil
Rewind System
• Electronic controlled torque rewind system
• 1000 linear metres capacity - diameter 406mm (16”)
• 1 x 76mm (3”) Air expanding rewind mandrel
• Fully interchangeable rewind mandrel (quick release)
• Label in - Label out facility on finished roll
• Web advance arm with 5 dividers
Touch Screen Interface
• HMI operator interface
• Full machine diagnostic on interlocks
• Machine mode status
Counter
• Label counter & Linear feet counter
• Programmable slow down and stop facility
Machine Speed
• Variable speed up to 250m/min (820ft/min) dependent on application and substrate
Specifications
Manufacturer | BGM |
Condition | New |
Stock Number | 3005 |
